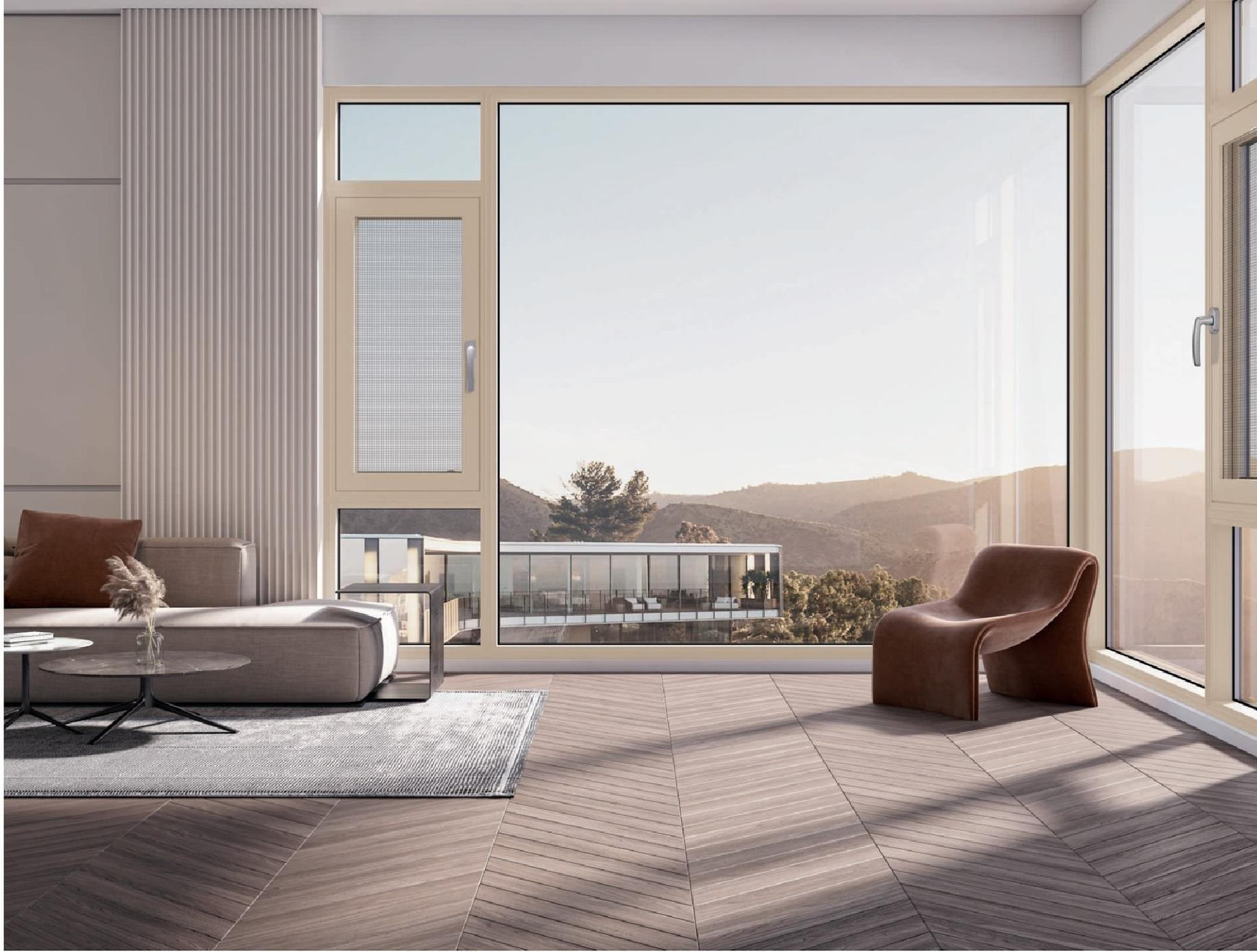

GN120B/GW120B aluminum alloy Bessel window screen integrated casement window
Let’s Start Work
Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
Product Introduction
- Profile material
Profile brand: Comity
Aluminum alloy material: National standard 6063-T5 (five cavity)
Insulation strip material: PA66 (multi cavity)
Main profile wall thickness: 1.8mm - Hardware standard configuration
Handle: HOPPE Germany Haobo
Internal hardware: SIEGENIA Germany Siglia (four point lock) - Glass standard
Standard specifications: 6+9A+6+9A+6 three glass two cavity LOW-E
External fan: 6+18A+6 double silver LOW-E
Original brand: South Glass/Taiwan Glass/Xinyi
Available thickness specifications: 37mm-46mm - Optional configuration
HOPO children’s lock safety handle
HOPPE (Germany) with key handle
SIEGENIA Germany Siglia no pedestal handle
Glass 10+15A+10LOW-E/12+15A+12LOW-E
Open the safety fence
| Product performance indicators | ||||
| Wind resistance | Air tightness | Water tightness | thermal insulating property | Sound insulation performance |
| Level 9 | Level 8 | Level 6 | K≤1.0w/m²k | ≥45dB |
Note: The performance indicators of the product are based on the standard opening and LOW-E mirror film glass test data. There may be certain errors due to factors such as climate differences, installation environments, and opening sizes in different regions.
| Product warranty period | |||
| Profile | Glass | Hardware | Sealing element |
| 15 years | 15 years | 5 years | 10 years |
Note: Glass has a 5-year warranty for fogging and self explosion. For other specific warranty standards, please consult your local dealer or specialty store
