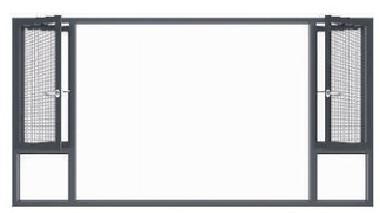

GN115/GW115 Aluminum Alloy Optimal Window Screen Integrated Flat Window - Standard Version

Brochure

Download our inspection report to see detailed data of the service and our workflow.

GN115/GW115 Aluminum Alloy Optimal Window Screen Integrated Flat Window - Standard Version
0M

Let’s Start Work
Together

Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.

Product Introduction

  • Profile material
    Profile brand: Comity
    Aluminum alloy material: National standard 6063-T5
    Insulation strip material: PA66
    Main profile wall thickness: 1.8mm
  •
  • Hardware standard configuration
    Handle: HOPO Hao Bo
    Internal hardware: HOPO Hao Bo
  •
  • Glass standard
    Standard specifications: 5+20 A+5
    Original brand: South Glass/Taiwan Glass/Xinyi
    Available thickness specifications: 30mm-39mm
  •
  • Optional configuration
    HOPO children’s lock safety handle
    HOPO Hao Bo No Base Handle
    Glass 6+18A+6/8+15A+8/10+12A+10
    Open the safety fence
    Square pressure line/oblique pressure line
Product performance indicators
Wind resistance Air tightness Water tightness thermal insulating property Sound insulation performance
Level 8 Level 7 Level 6
Note: The performance indicators of the product are based on the standard opening and LOW-E mirror film glass test data. There may be certain errors due to factors such as climate differences, installation environments, and opening sizes in different regions.
Product warranty period
Profile Glass Hardware Sealing element
15 years 15 years 10 years 10 years
Note: Glass has a 5-year warranty for fogging and self explosion. For other specific warranty standards, please consult your local dealer or specialty store
